SPECIFICATIONS



Amp Hours: 280Ah



Application: RV,Solar/Wind Devices, RV Battery, On/Off Grid Solar System

Battery Size: 12.8V

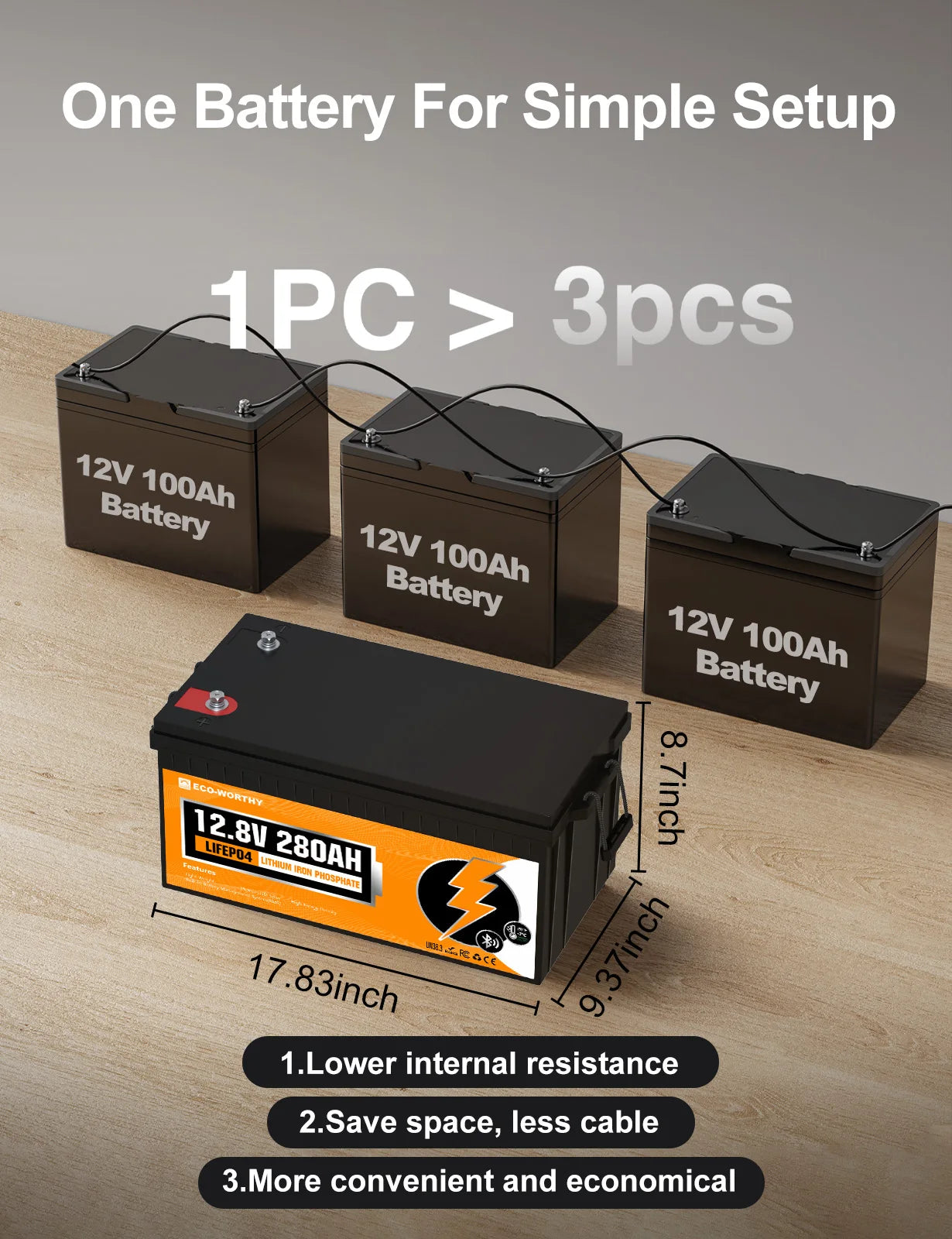

Battery Size(L*W*H): 17.8*9.37*8.7inch

Charge Over-Current Protection: 850A

Charging Mode: CC CV

Charging Temperature: 32~131℉/0~55 ℃

Charging Voltage: 14.6V

Chemical Composition: Lithium Iron Phosphate (LiFePO4)

Color: Black

Current Type: AC/DC

Discharging Temperature: -4~131 ℉ / -20 ~55 ℃

Energy: 3584Wh

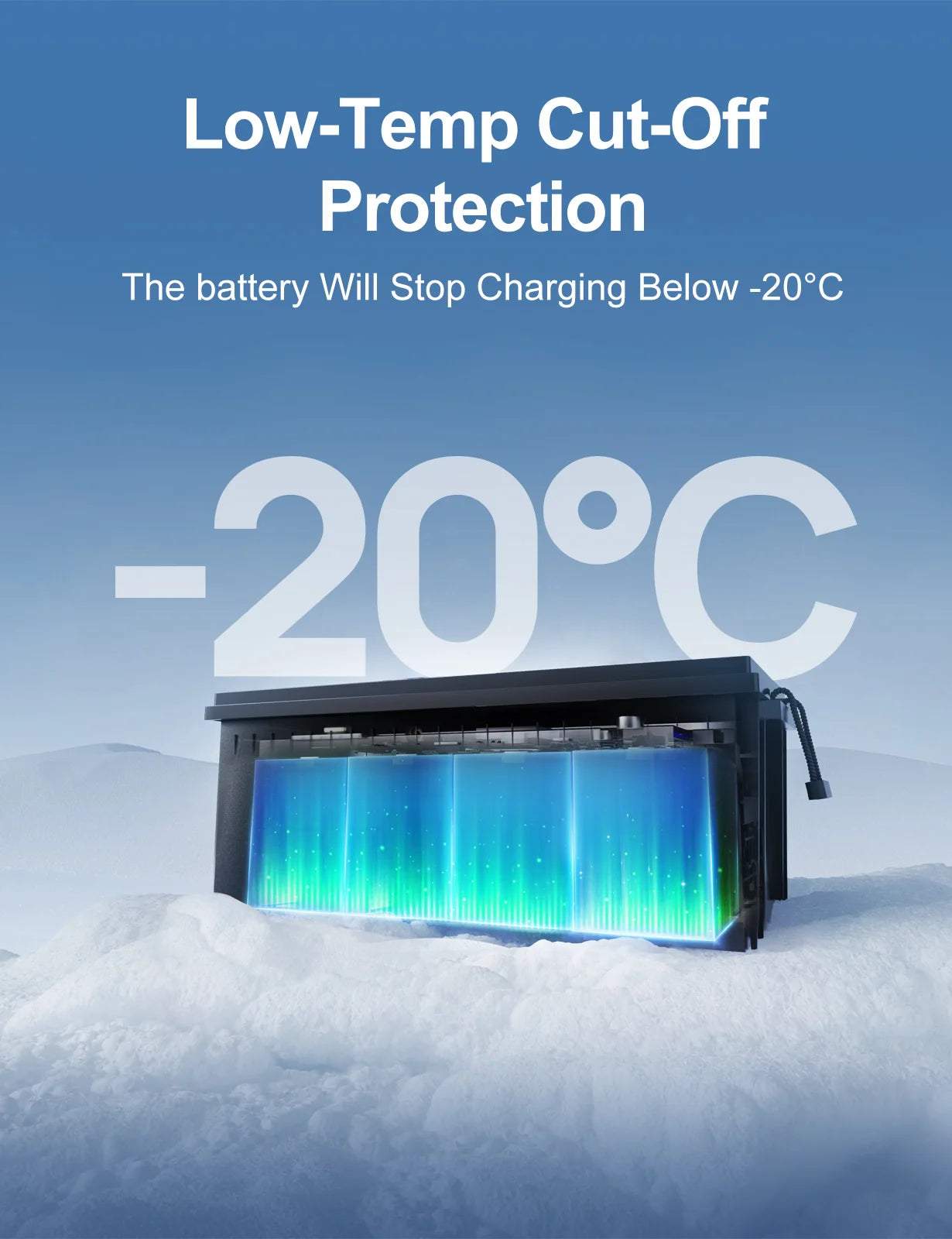

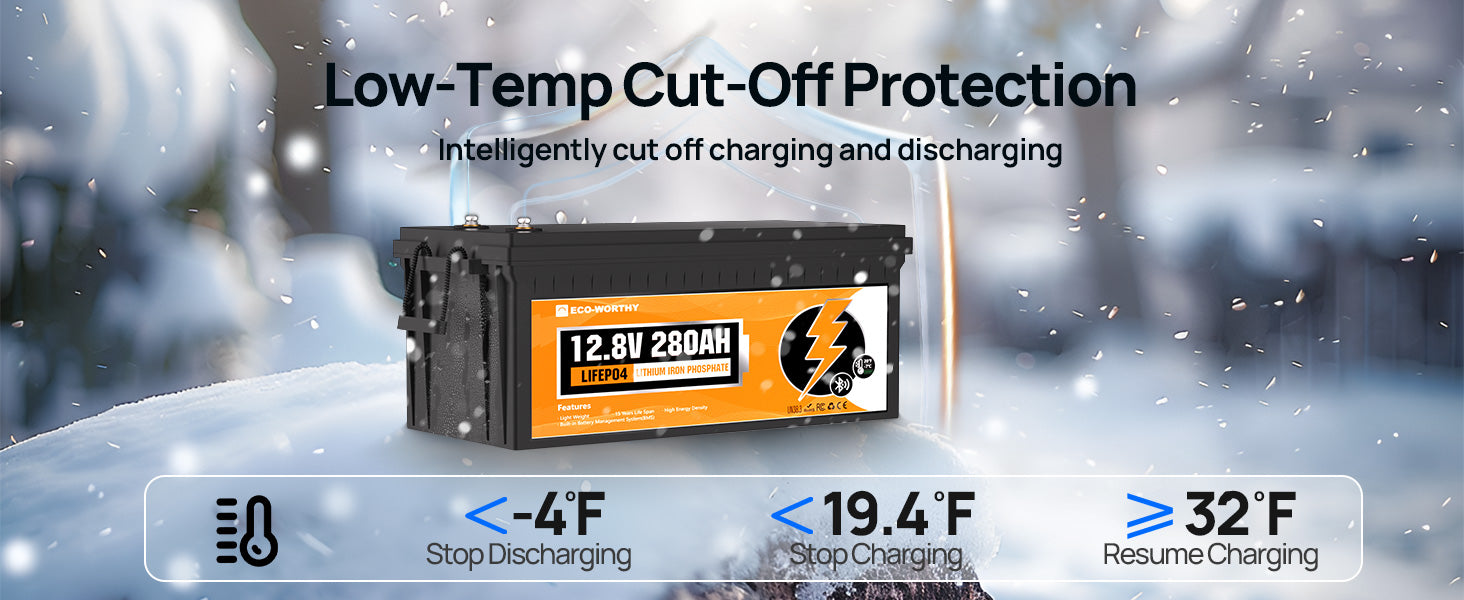

Low temperature protection: Yes

Maximum continuous charge: 160A

Maximum continuous discharge: 200A

Model Number: 1100700117

Nominal Capability: 280Ah

Nominal Capacity: 280AH

Nominal Voltage: 12.8V

Number of series and parallel connection: 4P4S

Power Source: Solar

Rated Capacity: 280Ah

Rated Voltage: 12V

Short circuit protection: Yes

Temperature Protection: Yes

Type: Li-Ion,Lithium Battery

Voltage: 12V,12V

Voltage at end of Discharge: 10V

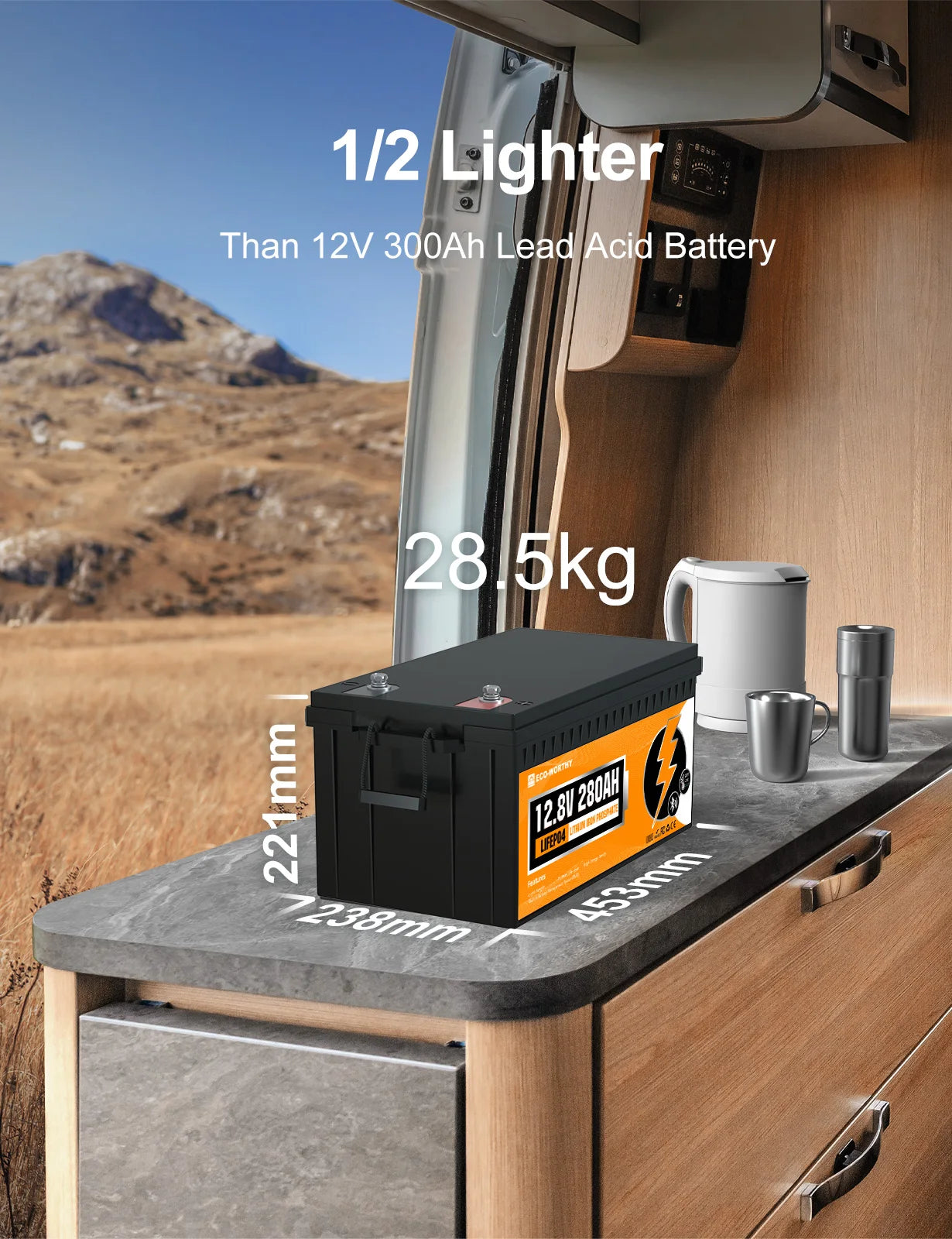

Weight: 28.5KG
